CATALOG DLC-QPC

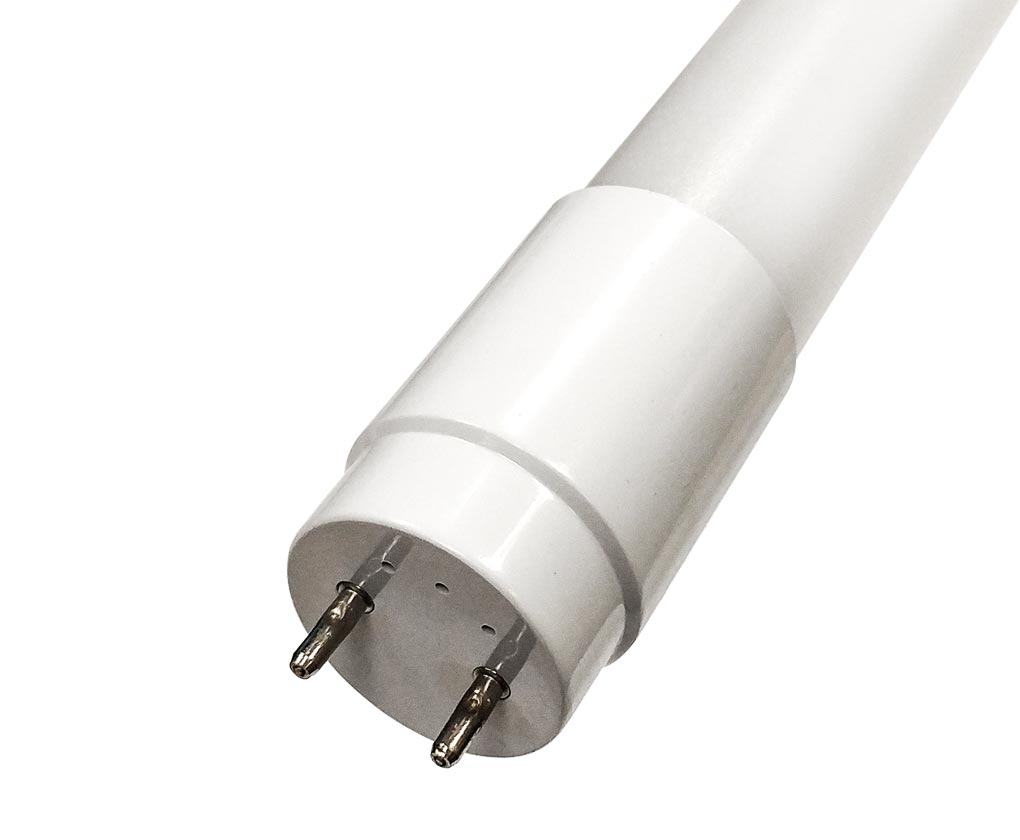

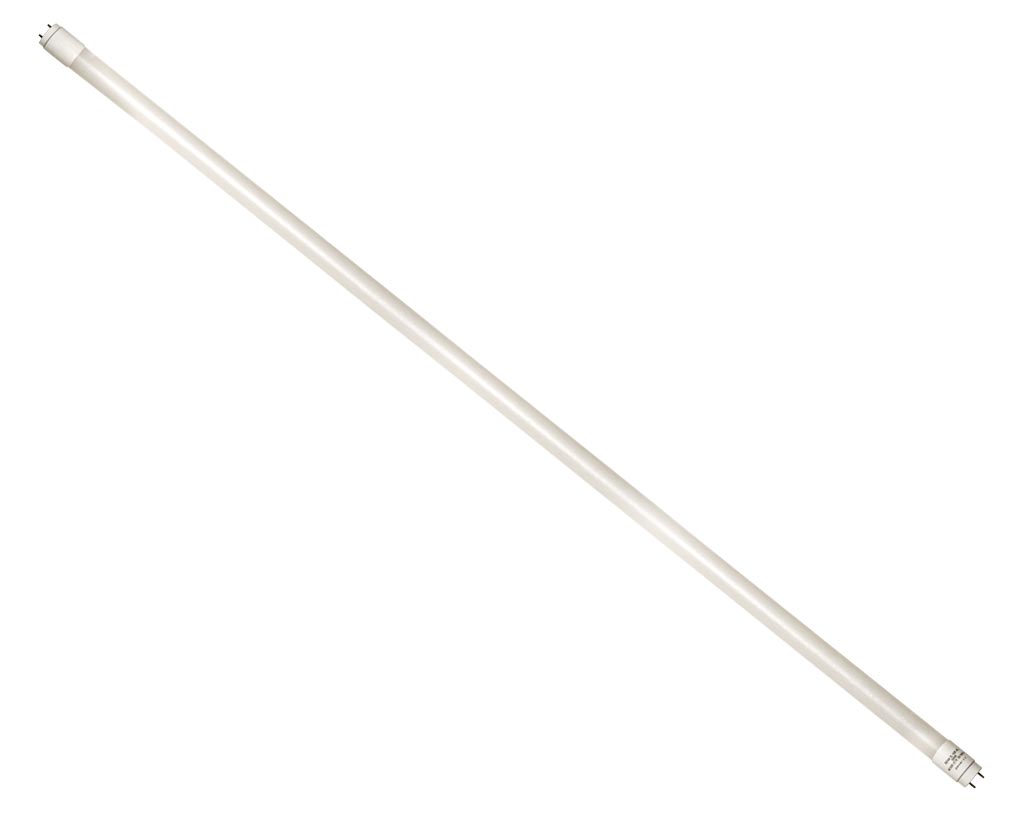

24" Linear Direct Wire LED Tube
Description
Featuring a translucent polycarbonate lens, the ALSET® 24" LED T8 Direct Wire Tube is both energy efficient and affordable. The ETL and DLC certified fixture is instant on and features ANSI surge protection. It's perfect for any location where fluorescent tubes are being replaced.
Key Features
  • Fits standard T8 / T10 / T12 G13 Sockets
  • 24" Nominal Length. Available in 48" length
  • Eliminates ballasts, direct wired for maximum efficiency
  • Translucent Polycarbonate Lens
  • 103-150 lumens per watt
  • 60,000 hours rated life
  • 120º beam angle
  • LM79 and LM80 reports available
  • ETL, DLC, RoHS & FCC approved
  • 7 year warranty
Additional Information on the 24" Linear Direct Wire LED Tube
SPECIFICATIONS
AVAIL. OPTIONS
CONTACT US
Technical Specifications
  • Input Voltage: 120-277V
  • Power factor: 0.96
  • Instant on - 200 mA current
  • ANSI surge protection
  • Up to 1,000 lumens per package
  • 103-150 lumens per watt
  • 8.6 watts nominal
  • CCT: 4000K
  • Operating Temperature: -40°F - 113°F
  • Standard white finish at ends
  • 120º angle
  • Non-dimmable

Applications:

  • For indoor use only.
  • Offices
  • Workshops
  • Basements
  • Task Lighting
  • Schools
  • Retail Stores
  • Airports
