CATALOG DLC-QPC

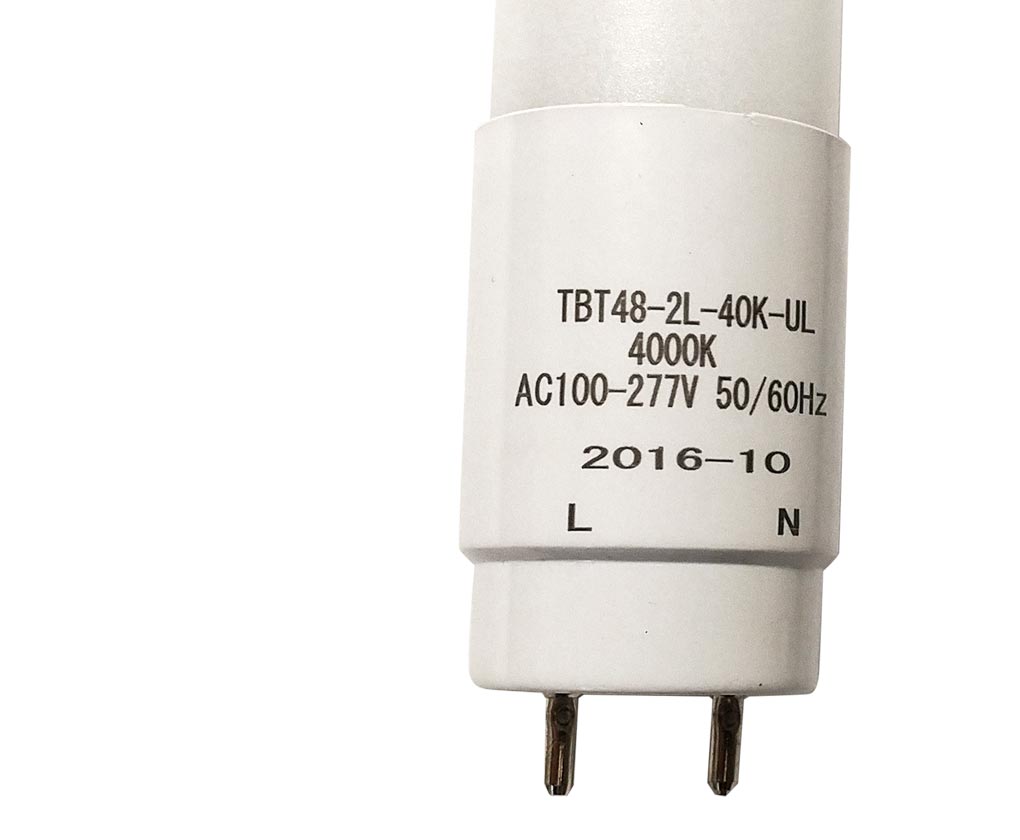

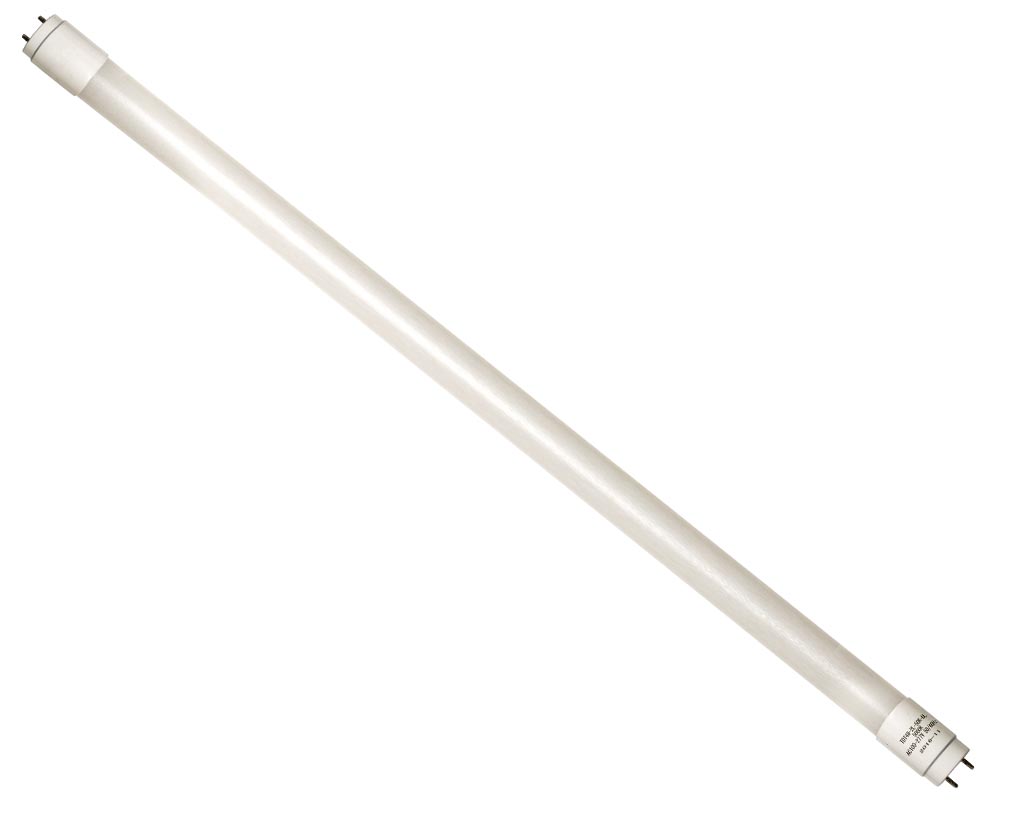

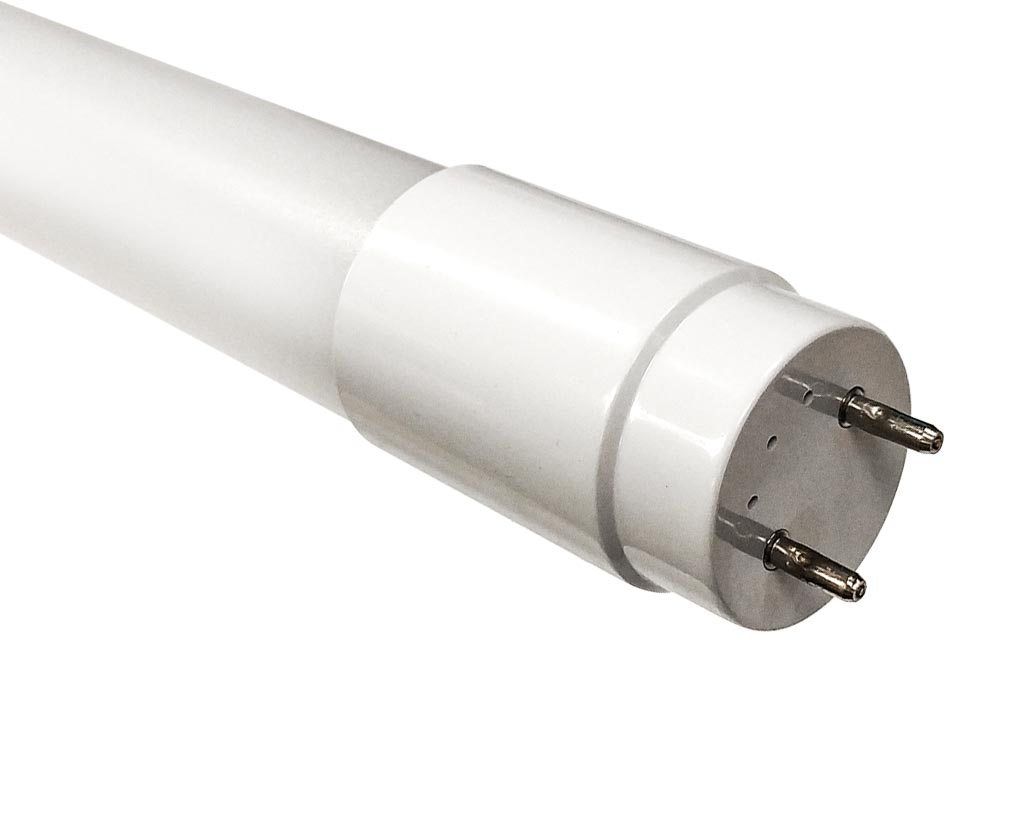

48" Linear Direct Wire LED Tube (Gen I) (Gen II)
Description
Featuring a translucent polycarbonate lens, the ALSET® 48" Linear Direct Wire LED Tube is both energy efficient and affordable. The ETL and DLC certified fixture is instant on and features ANSI surge protection. It's perfect for any location where fluorescent tubes are being replaced.
Key Features
  • Fits standard T8 / T10 / T12 G13 Sockets
  • 48" Nominal Length. Available in 24" length
  • Eliminates ballasts, direct wired for maximum efficiency
  • Translucent Polycarbonate Lens
  • 100-150 lumens per watt
  • 60,000 hours rated life
  • 250° beam angle
  • LM79 and LM80 reports available
  • ETL, DLC, RoHS & FCC approved
  • 7 year warranty
Additional Information on the 48" Linear Direct Wire LED Tube (Gen I) (Gen II)
SPECIFICATIONS

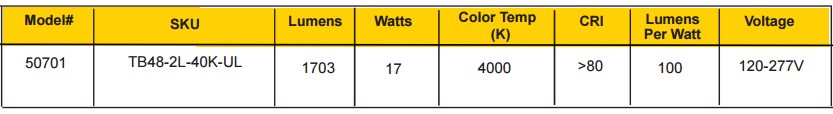

AVAIL. OPTIONS
CONTACT US
Technical Specifications
  • Input Voltage: 120-277V
  • Power factor: 0.96
  • Instant on - 200 mA current
  • ANSI surge protection
  • Up to 2,000 lumens per package
  • 100-150 lumens per watt
  • 17 watts nominal
  • CCT: 4000K
  • Operating Temperature: -40°F - 113°F
  • Standard white finish at ends
  • 120ยบ angle
  • Non-dimmable

Applications:

  • For indoor use only.
  • Offices
  • Workshops
  • Basements
  • Task Lighting
  • Schools
  • Retail Stores
  • Airports
