CATALOG DLC-QPC

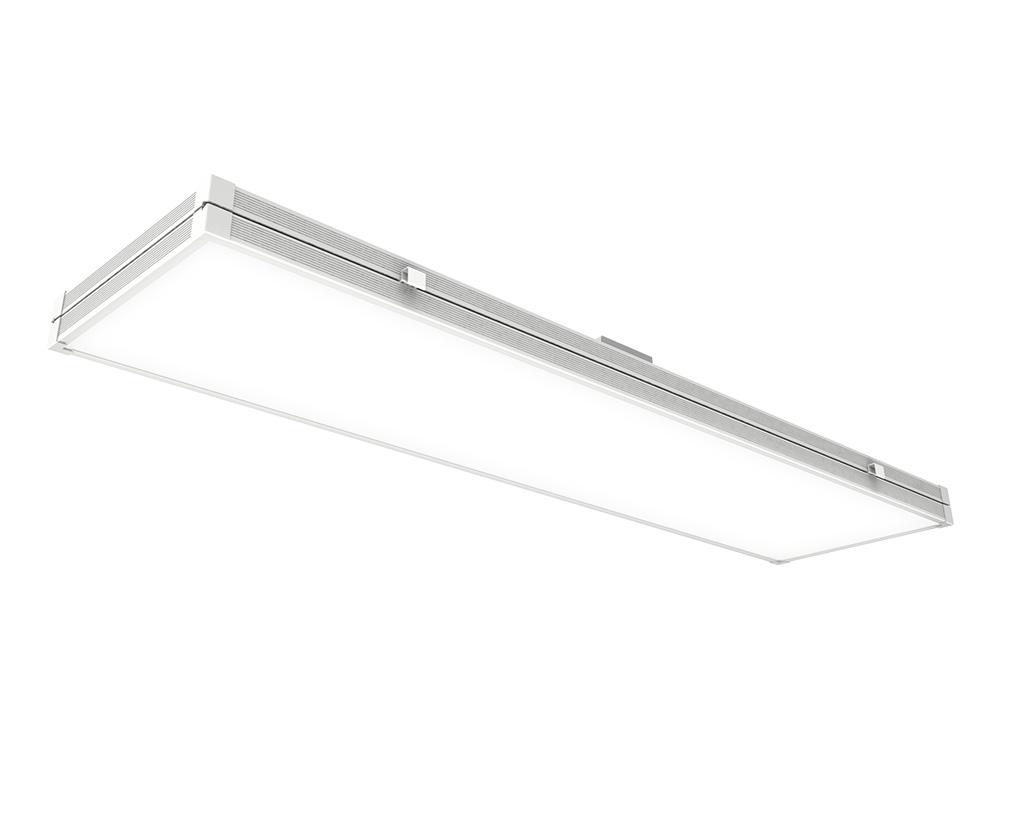

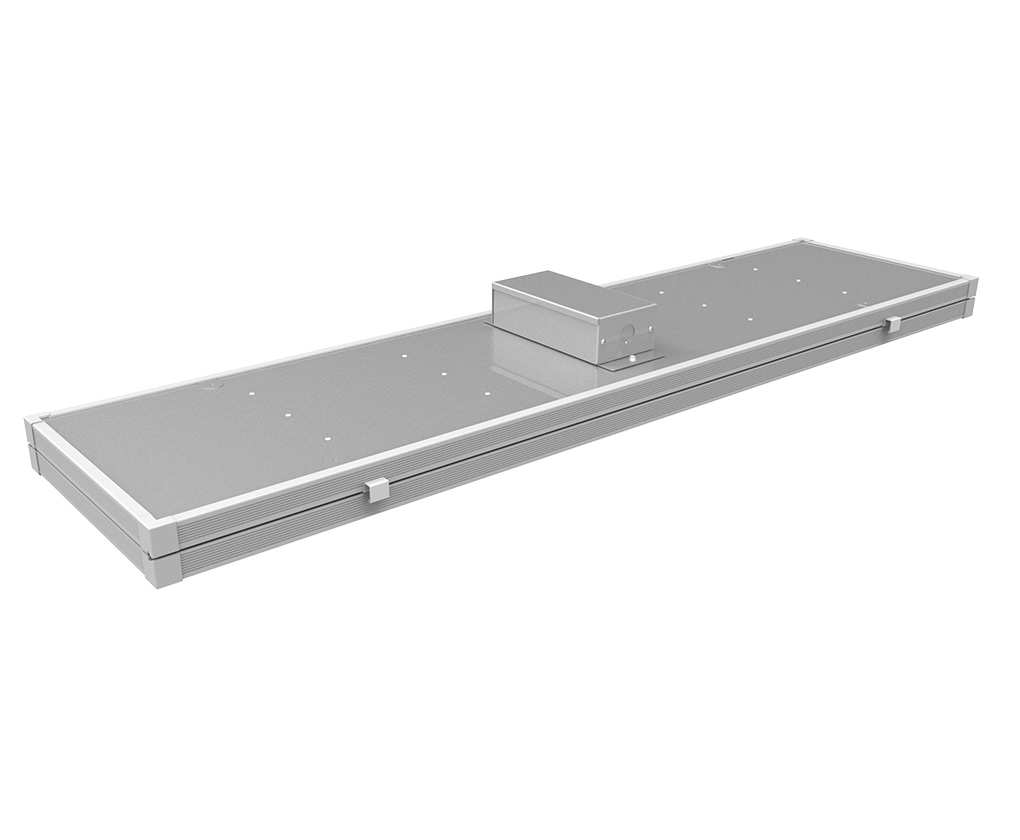

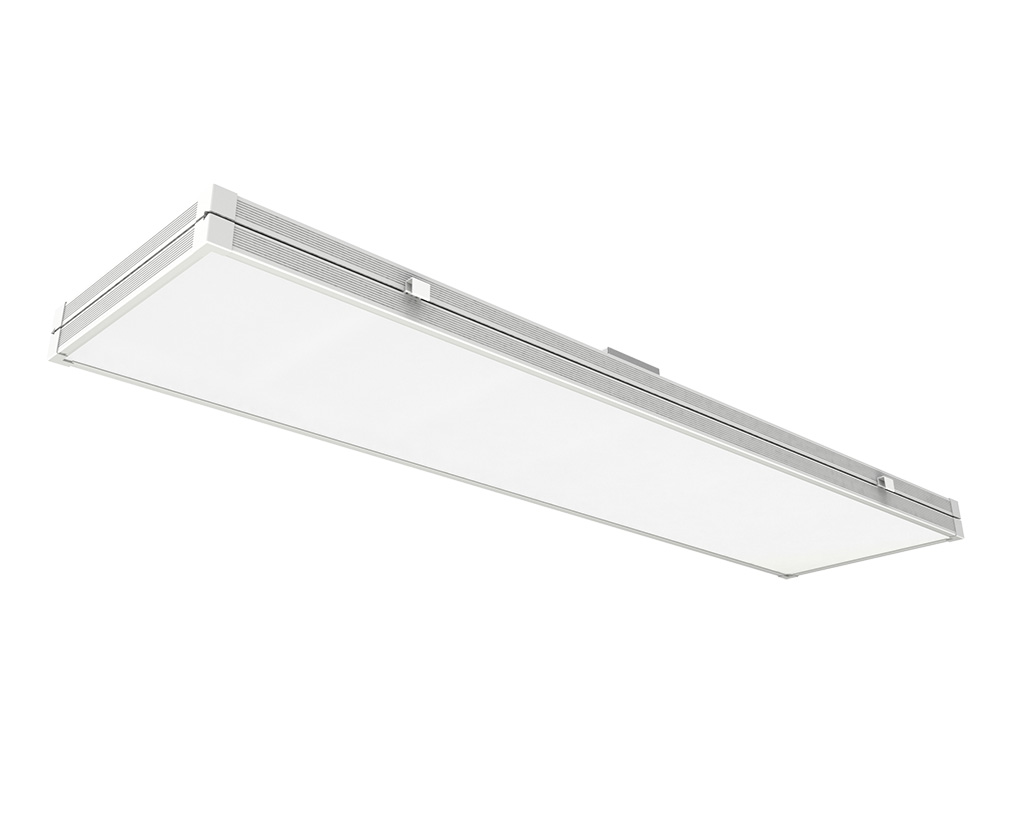

LED Frosted Lens 1'x4' Troffer
Description
Featuring a frosted lens to reduce glare, the ALSET® Frosted Troffer LED is both convenient and versatile. The UL and DLC certified fixture is both dimmable and instant on. It's perfect for warehouses, offices, hospitals and much more.
Key Features
  • Frosted lens reduces glare
  • Instant on to full brightness
  • High efficacy: 100-105 lumens per watt
  • UL, DLC, RoHS, & FCC approved
  • LM79 and LM80 reports available
  • 0-10V DC dimming capability
  • Rated for damp locations
  • Lightweight for easy installation
  • Mounting Options: Lay-in for T-grid, drop-ceilings;
  • Suspension cables for independent fixture mounting (ordered separately)
  • 7 year warranty
  • Emergency battery back-up available
Additional Information on the LED Frosted Lens 1'x4' Troffer
SPECIFICATIONS

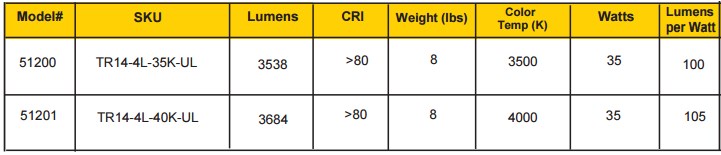

AVAIL. OPTIONS
CONTACT US
Technical Specifications
  • Height: 4¼ inches
  • Width: 11¾ inches
  • Length: 47¾ inches
  • Input Voltage: 120-277V
  • Lumens: 3500
  • Watts: 35
  • Emergency Battery Back-Up
  • Efficacy: 100-105 lumens per watt
  • CCT: 3500K, 4000K (inquire for other CCT)
  • CRI: >Operating Temperature: -40°F - 140°F
  • CRI: >80
  • Power Factor: 0.99
  • Beam Angle: Wide
  • Lens: Frosted
  • Weight: 8 pounds

Applications:

  • Offices
  • Warehouses
  • Healthcare Facilities
  • Workshops
  • Schools
  • Retail Stores
  • Indoor Area Lighting
Would you like to get more information on our products? Or perhaps you would like a quote for your commercial product?
We will be in contact soon
- The ALSET® Team
