Description

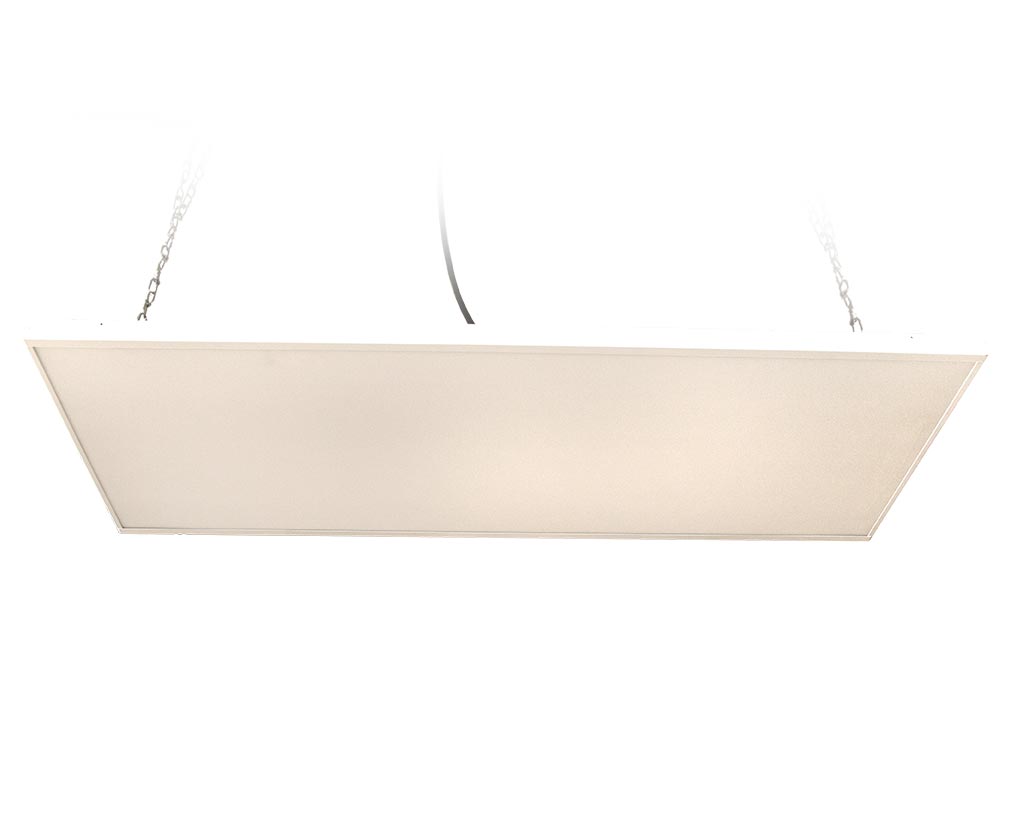

Featuring a frosted lens to reduce glare, the ALSET® Highbay Linear LED is both convenient and versatile. The UL and DLC certified fixture is instant on and features a wide light distribution. It's suitable for use inside and outside and is perfect for warehouses, gymnasiums, manufacturing, and much more

Key Features

Wide distribution (120 degree spread)
High efficiency (146-155) lumens per watt

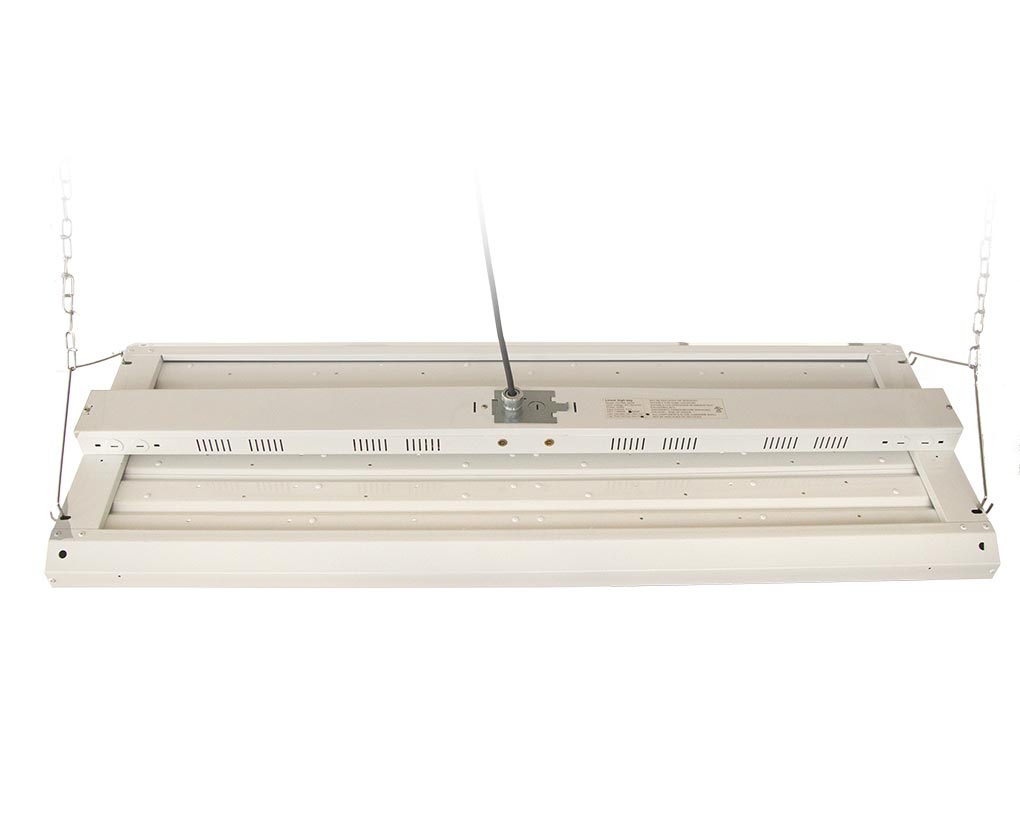

Multiple Mounting options- Chain, Cable and pendant hanger
Included with fixture
Available in 4000K or 5000K color temperature
CRI over 80
Dry or Damp Rated
Operating Temperature: (Need data)
Dimensions: 23.8” x 12.6” x 3.62” 45.9” x 12.6” x 3.62”
Field Replaceable Driver
0-10V DC dimming
LM79/80 and TM 21 Data Available
DLC Premium 4.0 listed
Flicker Free
Power Factor >0.9
Input Voltage 120-277V
7 year warranty
UL, RohS and FCC certified

Additional Information on the Linear Highbay

SPECIFICATIONS

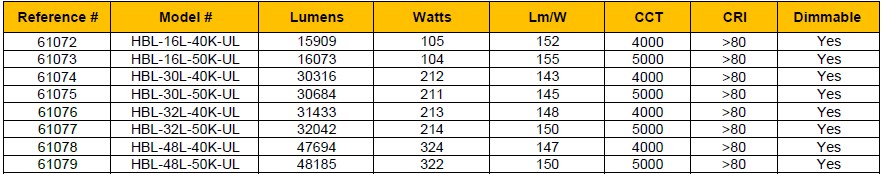

AVAIL. OPTIONS

Technical Specifications

Comming Soon

Applications:

Offices
Warehouses
Healthcare Facilities
Workshops
Storage Areas
Retail Stores
Malls
Convention Centers
Manufacturing Plants
Airports
Stadiums
Indoor Area Lighting
