CATALOG DLC-QPC

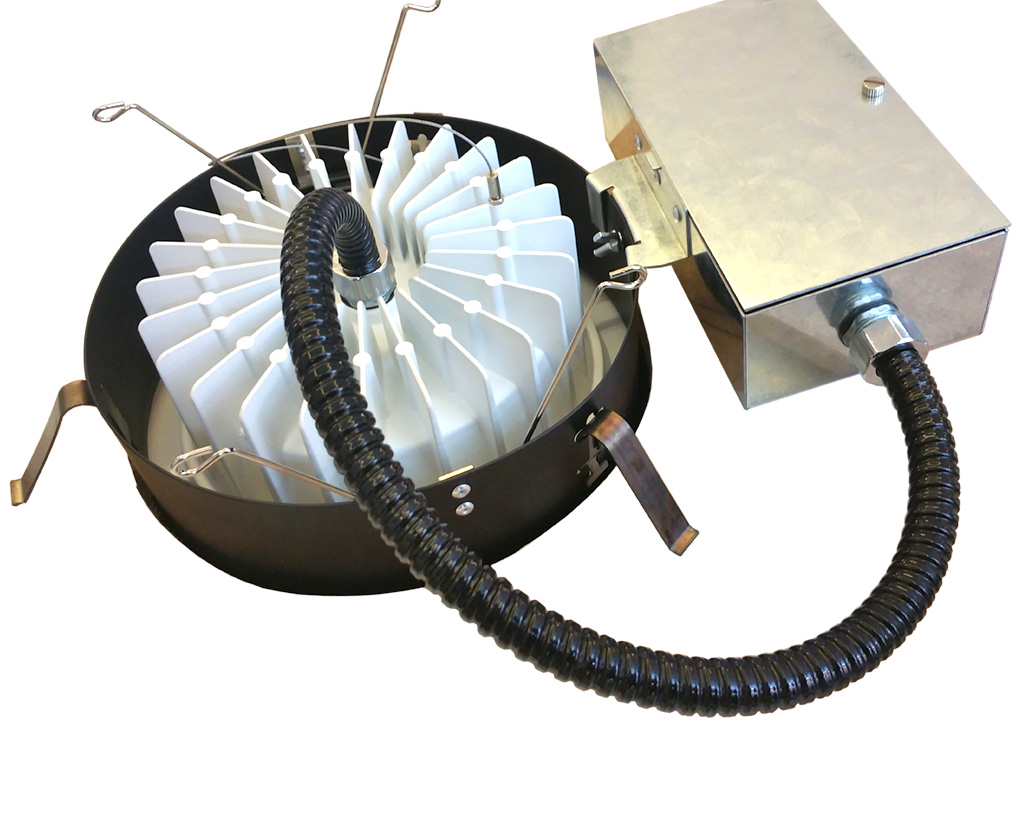

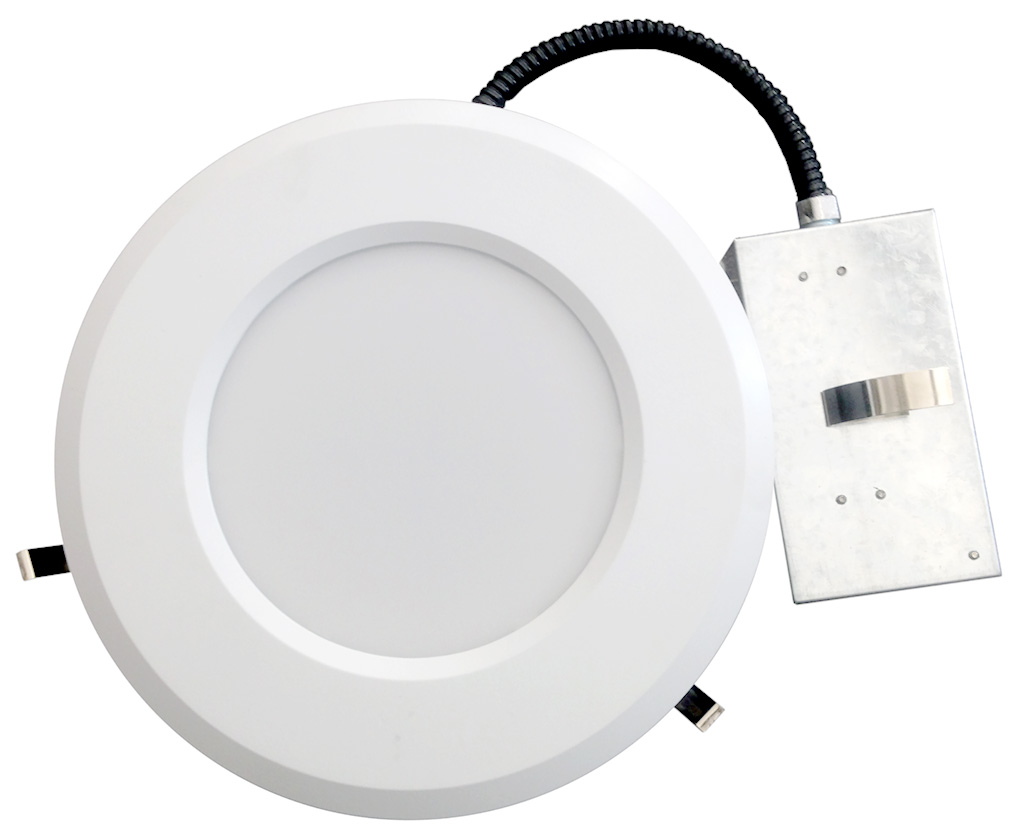

LED 8”- 10” Downlight LED Recessed
Description
Alset® LED 8”- 10” flexible downlight can replace existing open downlights measuring 8” to 10” with an adjustable ring. Perfect for retrofitting into drywall ceiling. No bar hangers required. Non IC rated. Suitable for wet locations and through wiring. With (3) different lumen packages, can be used in ceilings from 15’-30’ and higher. Comparable light output to 70W CFL, up to 100 W Metal Halides and 250-500W T4 lighting. Typical applications include atriums, church ceilings, retail stores, colleges and airports.
Key Features
  • Instant on to full brightness
  • Available in 3000K and 4000K color temperatures
  • High efficacy: 110 lumens per watt
  • 60,000 hours rated life
  • UL, Energy Star RoHS, & FCC approved
  • LM79 and LM80 reports available
  • Dimmable
  • Rated for damp locations
  • White trim ring is standard
  • Operating temp -40°F- 113°F
  • Workable voltage is 90-305V
  • 7 year warranty
Additional Information on the LED 8”- 10” Downlight LED Recessed
SPECIFICATIONS

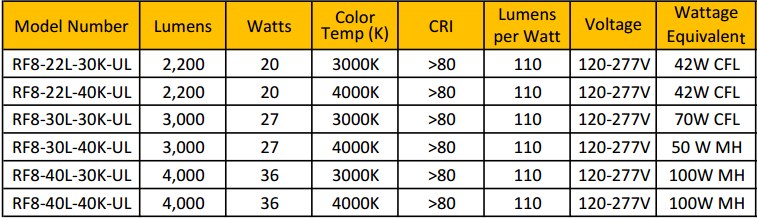

AVAIL. OPTIONS
CONTACT US
Technical Specifications
  • Height: 4.92”
  • Width: up to 11.2” includes trim ring
  • Input Voltage: 120-277V
  • Lumens: 2,200 to 4,000 available
  • Watts: 20 to 36
  • Efficacy: 110 lumens per watt
  • CCT: 3000K, 4000K
  • CRI is >80

Applications:

  • Bathrooms
  • Kitchens
  • Basements
  • Other indoor locations
Would you like to get more information on our products? Or perhaps you would like a quote for your commercial product?
We will be in contact soon
- The ALSET® Team
