CATALOG DLC-QPC

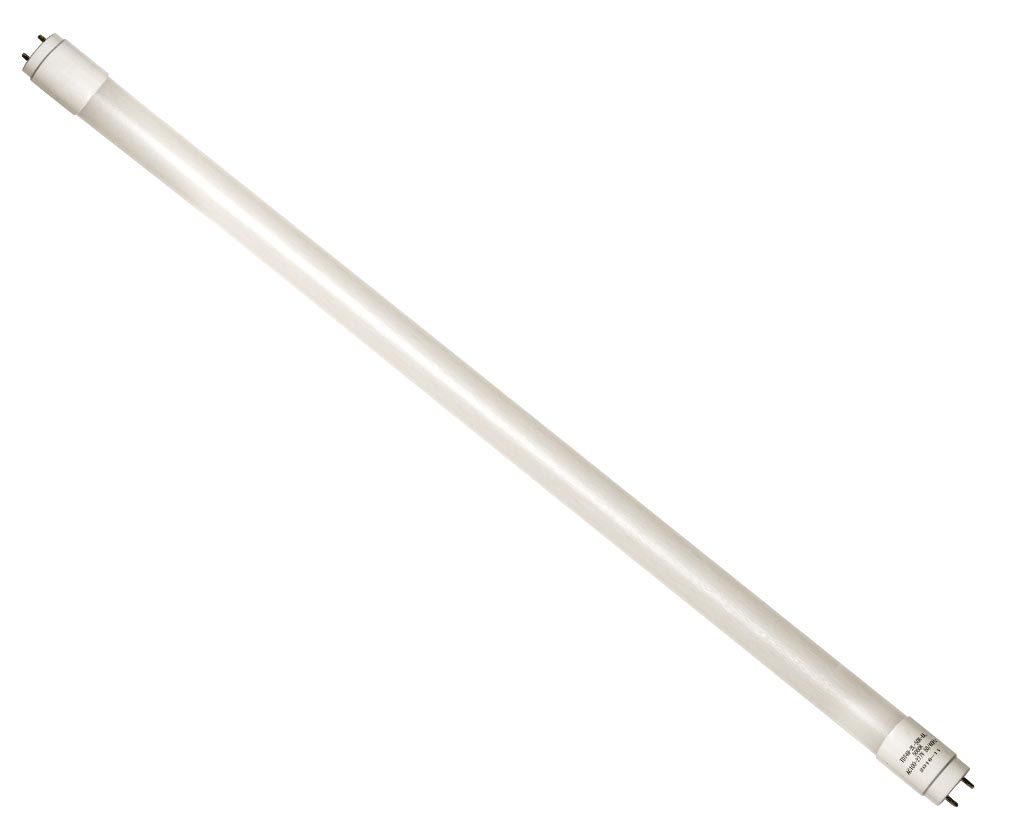

48" LINEAR LED OPTIFIT TUBE (Gen I) (Gen II)
Description
Featuring a translucent polycarbonate lens, the ALSET® 48" LED T8 OptiFit Tube is both energy efficient and affordable. This UL certified fixture is instant on and features ANSI surge protection. It's perfect for any location where fluorescent tubes are being replaced.
Key Features

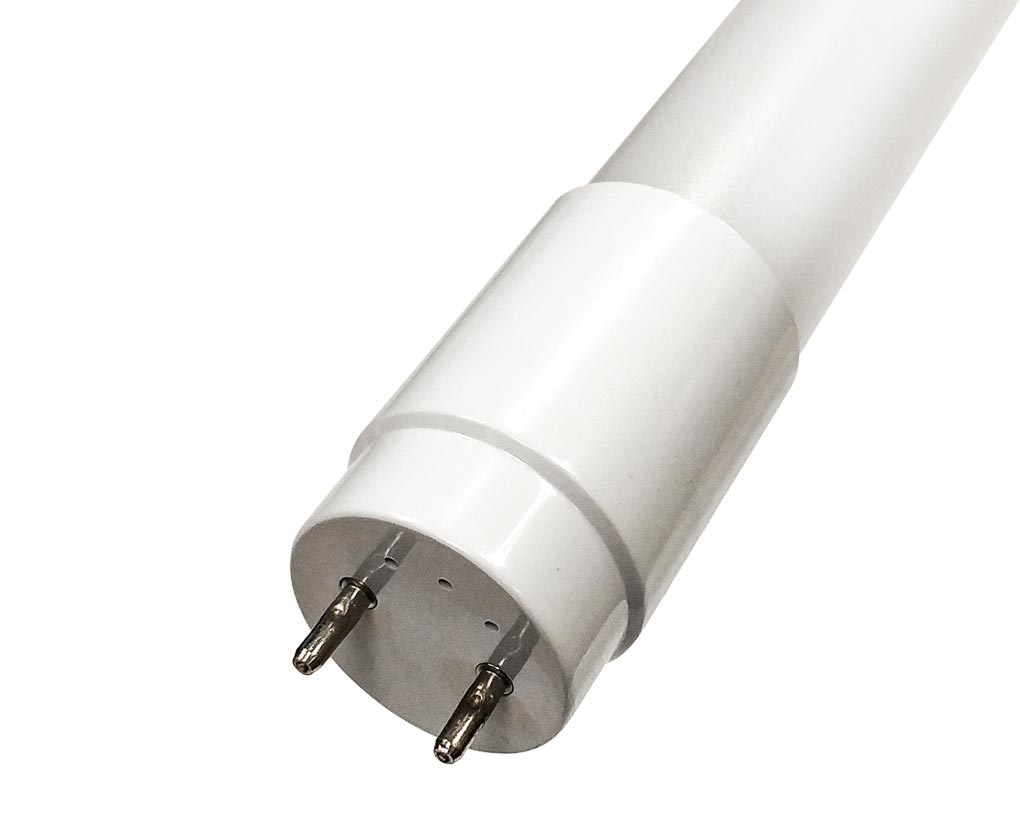

  • Fits standard T8 / T10 / T12 G13 Sockets
  • 48" Nominal Length. Available in 24" length
  • Compatible direct wire (1 or 2 sided)
  • Translucent Polycarbonate Lens Type
  • Silicone filled driver reduces the chance of fire and
    electric shock
  • Contacts on both sides of the tube prevent current from flowing
    unless the tube is properly seated and connected in the socket
  • Up to 150 lumens/watt!
  • 60,000 hours rated life
  • 120º beam angle
  • LM-79 & LM-80 certified
  • UL, RoHS & FCC approved
  • 7 year warranty
Additional Information on the 48" LINEAR LED OPTIFIT TUBE (Gen I) (Gen II)
SPECIFICATIONS

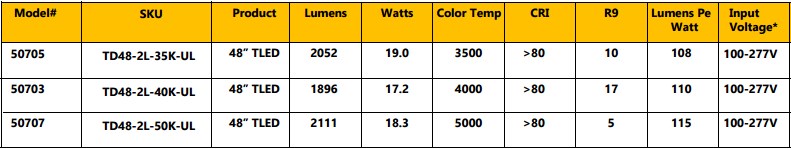

AVAIL. OPTIONS
CONTACT US
Technical Specifications
  • 120-277V
  • Power factor .96%
  • Instant on - 200 mA current
  • ANSI surge protection
  • Up to 2,000 lumens per package
  • CCT stocked in 3500K, 4000K and 5000K
  • 115, 135, and 150 lumens/watt models
  • 12, 13, and 16 watts nominal
  • Standard white finish at ends
  • 120º angle
  • Non-dimmable

Applications:

  • Offices
  • Workshops
  • Basements
  • Task lighting
