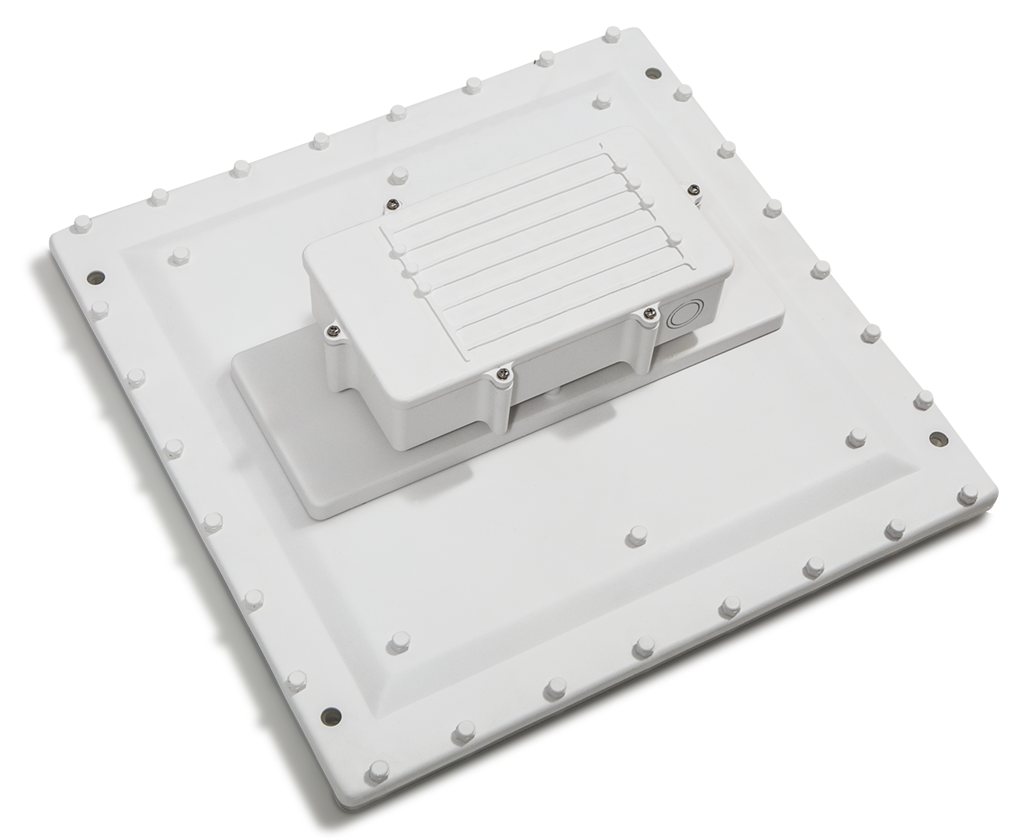

Representative Home Products Application About Us Contact Us Interior Exterior Download Catalog DLC QPL Air Purifier OxyPure Business Solutions Application Gallery Savings Calculator Photometrics Literature All About Us Home Interior Exterior Download Catalog DLC QPL Air Purifier OxyPure Business Solutions Application Gallery Savings Calculator All About Us Contact Us INTERIOR EXTERIOR CATALOG DLC-QPC LED GS Recessed Canopy Spec. Sheets Spec. Sheets Spec. Sheets Spec. Sheets Product Detail Product Detail Lighting Files Lighting Files EPA File Description Featuring a frosted lens to reduce glare, the ALSET® Semi-recessed Canopy LED is both convenient and versatile. Designed to fit into a 16” x 16” or 20” x 20” opening, this semi recessed fixture is identical to the surface mount, but engineered to have the driver board located behind the face of the canopy to create a sleek aesthetic appearance. This fixture is supplied with a water tight seal on drivers and connections. The fixture measures 18.17” x 18.17” x 3.70” deep to cover numerous existing fixture replacements up to 320 watt HID. Key Features Frosted lens reduces glare Instant on to full brightness Wide light distribution High efficacy: 116-117 lumens per watt UL, DLC, RoHS & FCC approved LM79 and LM80 reports available 0-10V DC dimming standard IP65 rated for wet locations Additional Information on the LED GS Recessed Canopy SPECIFICATIONS AVAIL. OPTIONS CONTACT US Technical Specifications Height: 3½ inches Base Width: 18¼ inches Base Length: 18¼ inches Input Voltage: 120-277V Lumens: 11,500 Watts: 100 Efficacy: 116-117 lumens per watt CCT: 4000K, 5000K (inquire about other CCT) Operating Temperature: -40°F - 113°F CRI: >80 Power Factor: 0.99 Beam Angle: Wide Lens: Frosted Applications: Gas Stations Parking Garages Security Entryways & Walkways Coming Soon Would you like to get more information on our products? Or perhaps you would like a quote for your commercial product? We will be in contact soon- The ALSET® Team Home Product Application About Us Contact Us Catalog Get the latest news on ALSET® LED Products Submit Your email will neither be shared nor sold to any third parties. After years of success with the NuWave Oven and NuWave PIC, NuWave, LLC has branched out with our ALSET® LED line of light bulbs and fixtures. ALSET® LED lamps, troffers, canopies, highbays, T-8 retrofit tubes and downlights continue our commitment to help our customers Live Well For Less through their superior heat management, instant-on feature and high efficacy. Call us at: 1(224)206-3083 Copyright© 2022 NuWave, LLC - All Rights Reserved - ALSET® is a registered trademark of NuWave, LLC × Get the latest news on ALSET® products: We will be in contact soon- The ALSET® Team × Would you like to get more information on our products? Or perhaps you would like a quote for your commercial product? We will be in contact soon- The ALSET® Team
